JP-005
9V Smoke Detector with Battery Independent Electronic Component for Home Safety
Factory Standalone Heat Sensor With 85db Buzzer 9V Battery Heat Detector
Brand Name:
JP-005, JIUPAI
Material:
abs plastic
Alarm sound:
85dB
Smoke alarm:
smoke alarm
Share With:

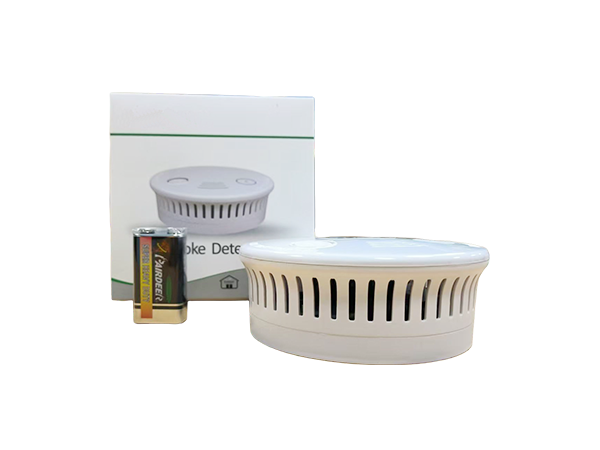

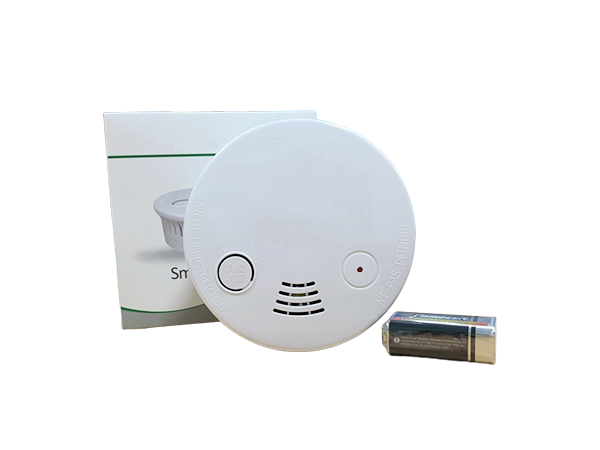

Smoke Detector with Battery Independent Electronic Component
Smoke Detector with Battery Independent Electronic Component
Introduction
Technical specifications
Instructions for use
Inquiry
Testing method
It should be tested once a week to ensure that the alarm is in a normal working state.
When the battery is installed and powered on, a 5-second automatic detection program needs to be performed. Press the start test button, if the alarm indicator light flashes rapidly and emits an alarm sound, the alarm is normal.
Smoke alarm
Under normal circumstances, the alarm indicator light flashes periodically (about once every minute). Every approximately 2 seconds, the automatic detection of the surrounding environmental smoke concentration is carried out. When the smoke concentration reaches the alarm value, the alarm indicator light starts to flash 15 seconds after the automatic detection delay, and the alarm emits an alarm sound.
Battery detection:
The alarm automatically detects the battery voltage every minute. Before the battery is depleted, it prompts once every minute (the alarm emits a "ding" sound). In this case, the battery should be replaced in time as it can last for 15 days. Otherwise, it will affect the normal operation of the alarm.
Product maintenance:
During use, if there is a usage failure, please contact the supplier as soon as possible. Do not disassemble and repair privately to avoid accidents.
If it is not used for a long time, the detector must be removed, the battery taken out, and placed in the packaging box in a ventilated and dry place.


Parameters
Place of Origin Zhejiang, China
Brand Name JP-005, JIUPAI
Material abs plastic
alarm sound 85dB
smoke alarm smoke alarm
home usage heat detector Battery missing indicator
indoor use only installation hardware included
high reliable detector Easy installation
Easy maintenance easy removal of abattery
SMD circuit board design Sleek low-profile housing design
low power consumption high stability
Alarm current ≤40mA(mA)
Working voltage dc9v(V)
Installation
For the first use, please first open the rear cover, remove the battery, tear open the battery packaging, then install the battery into the battery slot according to the polarity indicated, fix the rear cover with screws at the desired installation position.
Insert the main part into the rear cover to ensure stability and complete the installation.
