How To Choose the Right Firefighter Helmet

Release:

The Function of the Firefighter Helmet

Firefirefighter helmet is the core equipment for firefighters' head protection, designed around the “triple protection” principle:
1. Physical Protection: impact resistance (falling objects), anti-puncture (steel, broken glass), high temperature resistance (short 800 ℃);
2. Environmental Adaptation: waterproof, anti-corrosion (chemical liquids), anti-static (oil and gas environment);
3. Tactical Support: integrated lighting, communication, thermal imaging, to enhance the efficiency of fire fighting.

The Structure Component of Firefighter Helmet

Shell

The shell of a fire helmet is a key part of the protection and is made from either thermoformed polycarbonate (PC) or carbon fibre composite. Thermoformed polycarbonate (PC) offers high strength and toughness, while carbon fibre composites combine lightweight with high strength. Both materials allow the shell to have excellent impact resistance, can withstand an impact force of up to 500J, effective protection against falling objects in the fire scene impact and other hazards, for firefighters to build a secure barrier to the head.

Liner

The liner consists of an aramid honeycomb structure with a flame retardant foam layer. The aramid honeycomb structure disperses the impact force evenly, while the flame-retardant foam layer has an excellent shock-absorbing effect, with a shock absorption rate of ≥80%. In the event of an impact, the liner can greatly reduce the impact on the head, which not only ensures safety, but also improves wearing comfort.

Visor

The visor is made of gold-plated polycarbonate or toughened glass. Gold-plated polycarbonate has good optical properties and impact resistance, and the gold-plated surface reflects infrared rays; tempered glass is known for its high strength and transparency. Both materials can effectively prevent heat radiation, infrared blocking rate> 90%, can protect the firefighter's face from heat burns, to ensure a clear vision in the fire scene.

Neck protection (Collar)

The Collar consists of flame retardant rubber and aramid fabric. Flame retardant rubber can block the flame, aramid fabric flexibility and good protection, the combination of the two can effectively prevent sparks, liquids from the neck infiltration, perfecting the overall protection function of the helmet, providing firefighters with reliable neck protection.

The Key Accessories of Firefighter Helmet

Lighting System:

Adopt rechargeable LED bright light, in addition to the conventional lighting mode, additional strobe function (such as SOS distress signal), to enhance the visibility of emergency situations. The angle of the head can be freely adjusted to meet the lighting needs of different operating positions.

Communication Module:

Bone conduction headset transmits sound by vibrating the skull, avoiding the hearing damage caused by the traditional earbud headset due to the excessive noise in the fire scene, and at the same time, it is compatible with a variety of walkie-talkie bands to ensure that the instructions are conveyed in real time. Noise-cancelling microphone adopts intelligent algorithms, which can filter the environmental noise such as the sound of burning flames and building collapses, and pick up the human voice clearly.

Thermal Imaging Integration:

The miniature thermal camera supports wide-angle shooting and converts temperature data into visual images projected onto the inside of the helmet visor in real time. High-temperature areas are highlighted in red and low-temperature areas in blue, helping firefighters to quickly identify hidden fires, judge the stability of walls and look for signs of life.

What are the Essential Standards for Firefighting Helmets?

Core Certification Standard

Standard	Test requirements	Typical parameters
NFPA 1971 (American standard)	- Impact resistance: A 5kg steel cone can be dropped 1m without penetration - High temperature resistance: No deformation at 260° C for 5 minutes	Shell Thickness ≥1.5mm
EN 443(European standard)GB 24429	- Electrical insulation: No breakdown within 3 minutes at 10kV - Lateral compressive resistance: ≤15kN deformation	Overall Weight ≤1.5kg
(Chinese standard)	- Anti-corrosion: No failure after being soaked in acid and alkali for 24 hours -View Angle is ≥105°	Mask Light Transmittance ≥85%

Ergonomic Design
- Weight distribution: centre of gravity rear design (reduce neck fatigue);
- Ventilation system: top ventilation holes + removable dust filter (airflow exchange rate ≥ 30L/min);
- Adjustment system: knob type head circumference adjustment (suitable for 52-64cm head circumference).

Disadvantages of a non-fitting Firefighting Helmet

Blind spots in the field of vision

A loose and wobbly helmet obscures your vision, affecting your perception and judgement of your surroundings and making it very likely that you will hit an obstacle or misjudge your escape route in the midst of thick smoke.

Hearing Barrier

The non-compliant chin strap squeezes the ear, making it impossible to hear key commands, teammates' communication and distress signals, resulting in a disconnect between actions and the inability to avoid hazards in a timely manner.

Protective Gaps

Helmets shift during strenuous exercise and do not provide effective protection from external impacts, burning drops, flying debris, or direct hits to exposed areas.

Advantages of JIUPAI Firefighter Helmets

JUPAI firefighter helmet refuses to compromise with humanised detail design and multi-dimensional precise adaptation. It makes building firefighting, outdoor rescue and traffic accident handling safer, more comfortable and reliable.

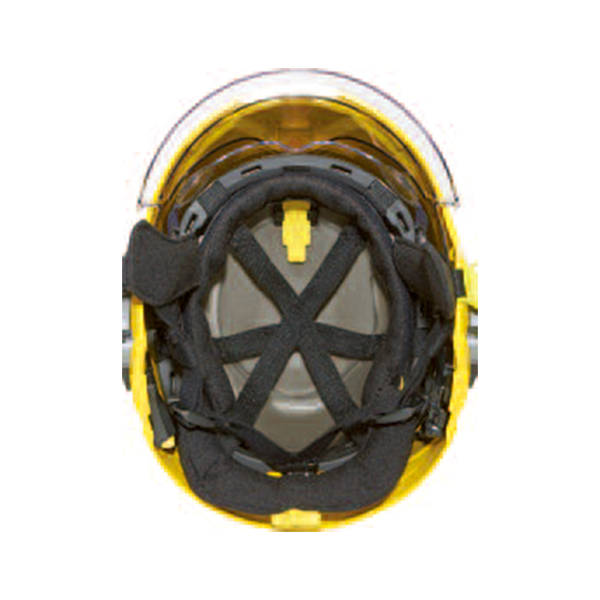

Size Adaptation

- Two sizes: medium head circumference 52-62cm, large head circumference 57-65 cm, widely compatible with blue friend head shape.
- Two types of padding: leather and Nomex, adjustable wearing height, to ensure head comfort, no pressure points.

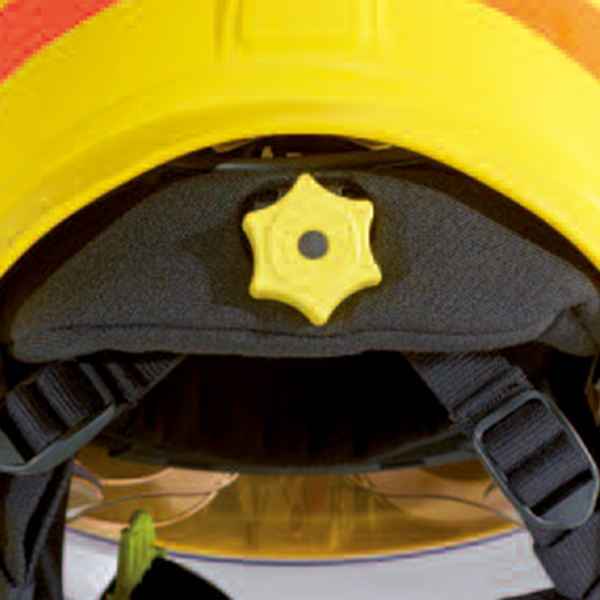

Head Circumference Adjustment

- Knob Quick Adjust: Ergonomic ratchet adjustment with large knob design, easy to adjust even with gloves.
- Precision Fine Adjustment: With multiple size increments, you can make adjustments at will after wearing to adjust to a comfortable fit.

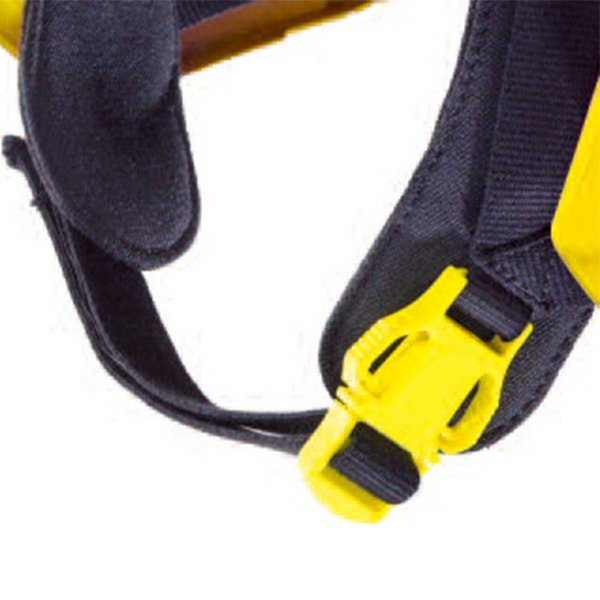

Chin Strap Design

- Angle Adjustment: Angle can be adjusted forwards or backwards to suit the wearer's needs, with an elasticated back strap for added stability.
- Stable and secure: 3-point chin strap design with padded side straps and flexible pivot points to better fit chin shape and size.

Firefighter Helmet Application Scenarios and Operation Norms

Fire Operation Process

Pre-wear Inspection:
- Confirm that the shell has no cracks and that the transparency of the mask is qualified.
- Test lighting and communication function (power-on self-test mode).

Fire Scene Adaptation
- Pull down the neck guard to the collar of the fire suit to ensure seamless integration.
- The distance between the mask and the respirator mask is ≥2cm (anti-friction fogging).

Emergency Disposal
- Quickly unlock the mask (one-handed operation, <2 seconds to remove);
- Emergency lighting strobe (SOS mode).

Multi-scene Adaptability
- High-level rescue: helmet camera returns real-time images to the command vehicle;
- Chemical plant leakage: anti-chemical mask (optional accessory) to replace the standard mask;
- Earthquake collapse: reinforced neck protection (anti-rockfall impact) + acoustic positioning beacon.

Firefighter Helmet Maintenance and Life Management

Daily maintenance
- Cleaning and disinfection: neutral detergent to wipe the shell, alcohol cotton pads to disinfect the inner lining;
- Battery management: charging and discharging once a month (lithium battery against over-discharge);
- Ageing test: UV lamp to check material embrittlement (yellowing/cracking).
Decommissioning standards

Indicators	Decommissioning Threshold
Shell Damage	Crack length >3mm or depth >1mm
Impact resistance	Measured absorbed energy < 70% of the nominal value
Electronic system Failure	Critical functions (lighting/communication) cannot be repaired

Conclusion

Fire helmet is not only a piece of equipment, but also a 'smart shield' and 'life defence' in the fire scene. Choosing a well-fitting, reliable fire helmet is vital to a firefighter's life.
