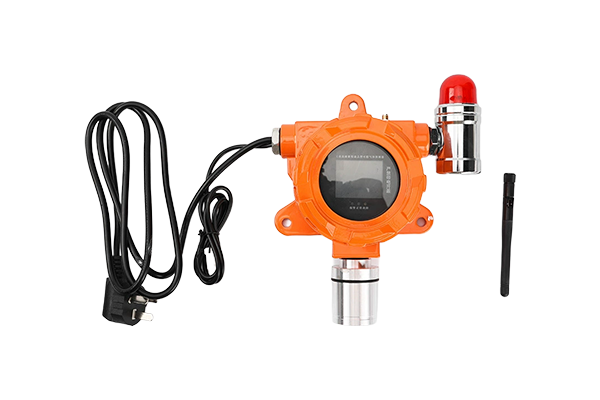

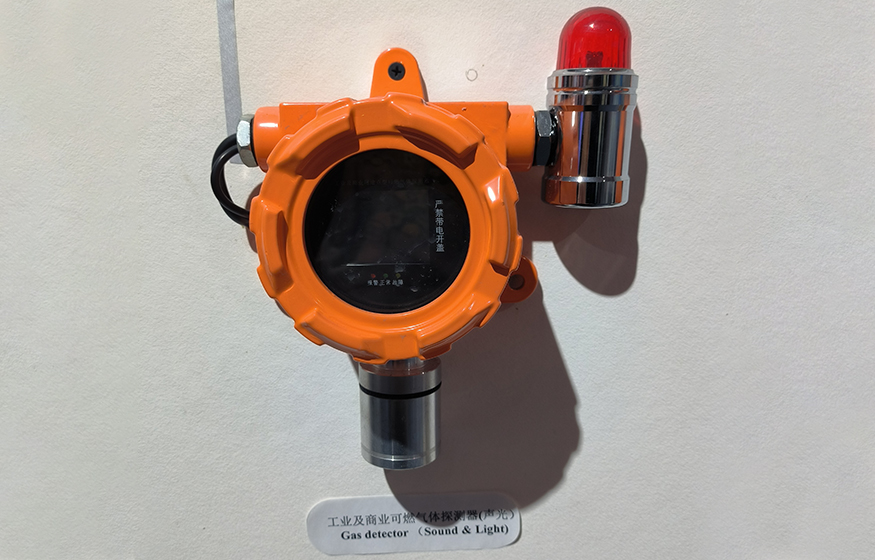

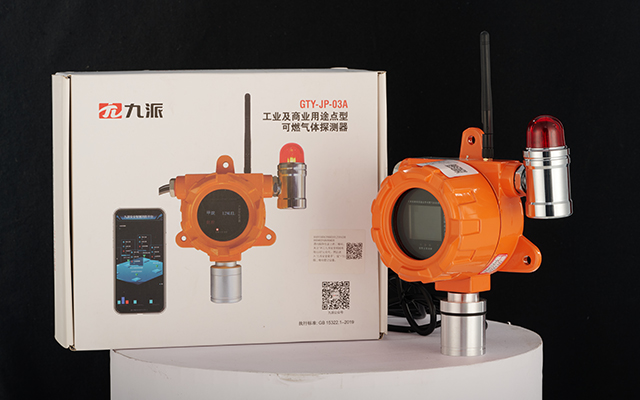

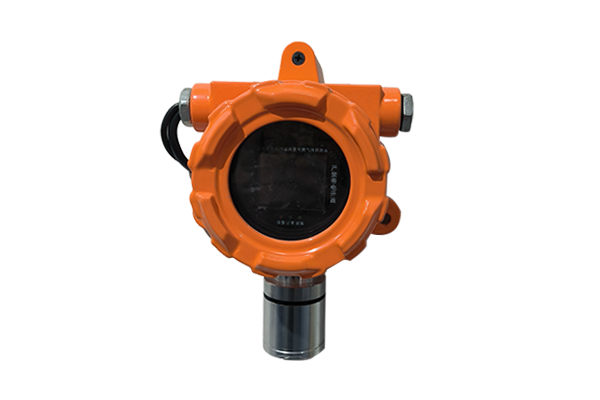

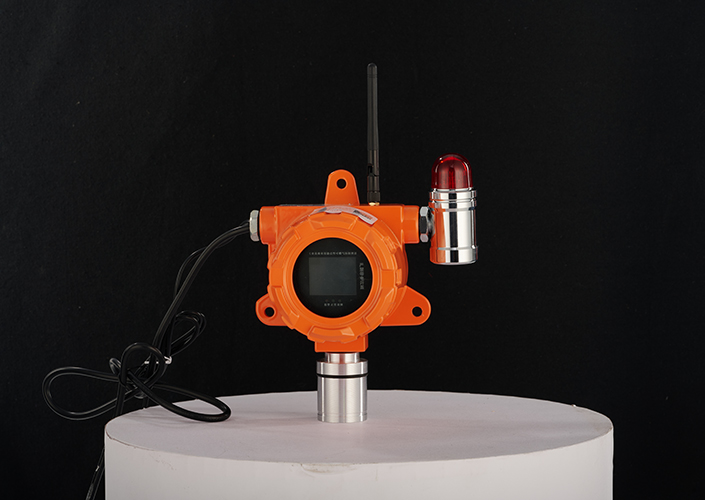

GTY-JP-03
Industrial combustible gas alarm
Industrial-grade fixed gas detector, Liquefied Natural Gas Leak Detector
Industrial-grade fixed gas detector, Liquefied Natural Gas Leak Detector
Range：
3%LEL-100%LEL
Sampling method:
Free diffusion mode
Shell material:
Metal
Introduction
Technical specifications
Feature
Instructions for use
Inquiry
Introduction
The 2/3/4 wire, 4-20mA and RS485Modbus output fixed device provides continuous detectionand monitoring of gases for a widerange of industrial environments.The fixed point detector with in-builtalarm and fault relays for theprotection of personnel and plantfrom flammabletoxic and oxygenhazards.
Parameters
| Product name: | Industrial combustible gas alarm GTY-JP-03 |
| place of origin: | ZHEJIANG |
| Brand: | JIUPAI |
| Sensor model: | NAP-55S |
| power supply mode: | AC220V |
| Alarm setting value: | The lower limit alarm setting value is 20% LEL, and the upper limit alarm setting value is 50% LEL. |
| Work method: | Independent type |
| Type of test gas: | Methane, propane |
| Range: | 3%LEL-100%LEL |
| Operating environment: | Indoor use type |
| Alarm Type | Sound and light alarm（Optional） |
Features
Independent gas detector
Applicable to factory workshops
Installation is simple. Just plug in the power supply and it can be used.
Working voltage: AC 220V
Sensor type: Catalytic combustion type
Operation method: Infrared remote control
Sampling method: Free diffusion type
Dual-link alarm system, featuring both sound and light functions as options
Request A Quote
Instructions for use
We have a certain scale capacity to ensure your order delivery cycle.
Protective clothing worn to save people, rescue valuable materials, and close combustible gas valves when travelling through the fire zone or entering the flame zone and other hazardous places in a short period of time. Firefighters must use water gun and high-pressure water gun protection for a long time when performing fire-fighting tasks. No matter how good the fireproof material is, it will burn in the flame for a long time.
It is strictly prohibited to use it in places with chemical and radioactive damage.
Must be equipped with air respirator and communication equipment, etc. to ensure that the use of personnel in the high temperature state of normal breathing, as well as to get in touch with the commanding officer.
