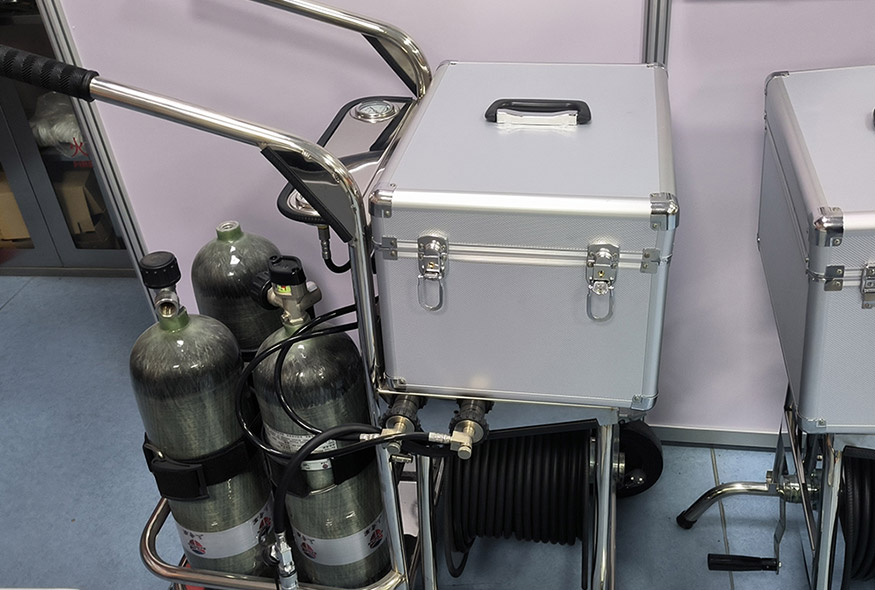

Trolley Air breathing apparatus mobile air supply cart long tube breathing apparatus 2 or 4 cylinders with mask
Trolley Air breathing apparatus provides the breathing for people who work for a long time in an area full of dangerous gas or for people who are providing disaster relief in an environment lack of oxygen or full of poisonous or harmful gases. The apparatus is consisted of the movable air supply device and the breathing device. It is equipped with two pairs of breathing masks so that it can serve two people at the same time. Its operation region can be extended to 50m to the longest.

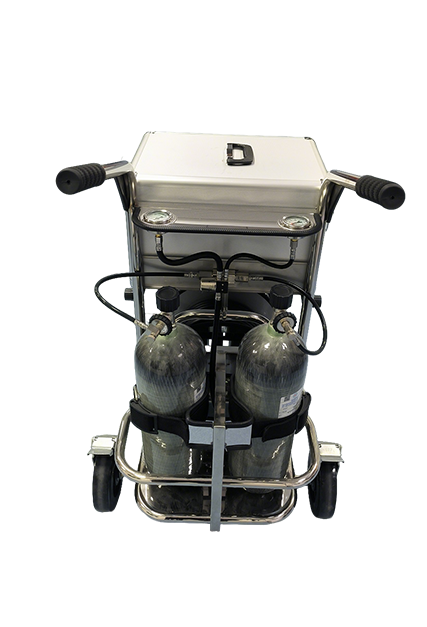

Trolley Air breathing apparatus is divided into upper and lower combination structure, puller folding type, easy to transport and store. The product is designed for 2-4 bottles to be used at will, and each gas cylinder can be used individually in turn. At the same time, the storage box is designed to store the comprehensive cover, manuals and tools for use. Long tube with 30MPa high pressure, at the same time there is 8MPa medium pressure gas guide g pipe connection function, can connect the medium pressure gas source for a long time use.
Remove the special waist, back belt, according to the wearer's body type, moderate adjustment of the waist belt, back belt, so that the position of the inter-waist valve, escape bottle in the human waist on both sides (pay attention to the direction of the inter-waist valve, fast socket should face up), in order to wear comfortable, do not hinder the arm activities as appropriate. First, the mobile gas source supply pipe on the fast socket from the bottom up into the fast plug of the waist valve, and then the mask - gas supply valve plug into the fast socket of the waist valve, but also before wearing the belt will be mobile gas source and mask connector directly to the wife first waist valve. Open the cylinder valve of the mobile air source, put on the breathing mask and breathe freely before entering the work site. If 2 people are using it at the same time, they should enter together after wearing it completely, and pay attention to keep the distance and direction to prevent accidents by pulling each other's air supply pipe.
