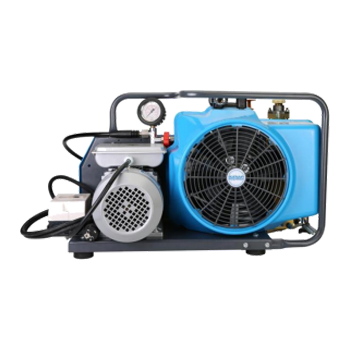

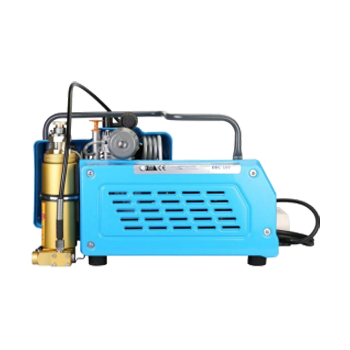

100LPM High Pressure Breathing Air Compressor

Displacement:

100 L/min

Working Pressure:

225 / 330 bar

Power

2.2 KW

Compression Stage:

3-cylinder 3-stage

Quote Now

Send E-mail

Share With:

2.2kw 100m3/min 225bar 330bar Air Cooling air Compressor High Pressure Pcp Paintball Scuba Diving air Compressor

Introduction

Technical specifications

Inquiry

Introduction

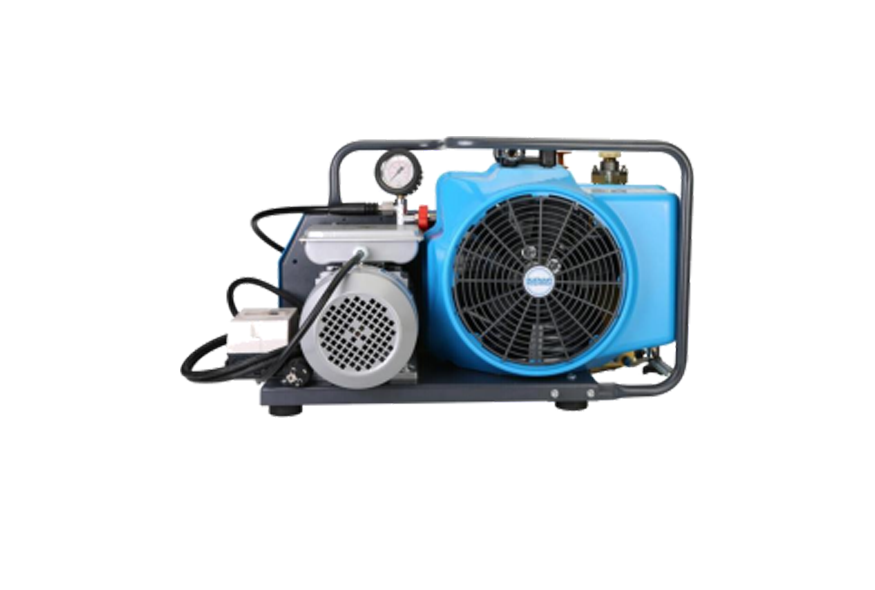

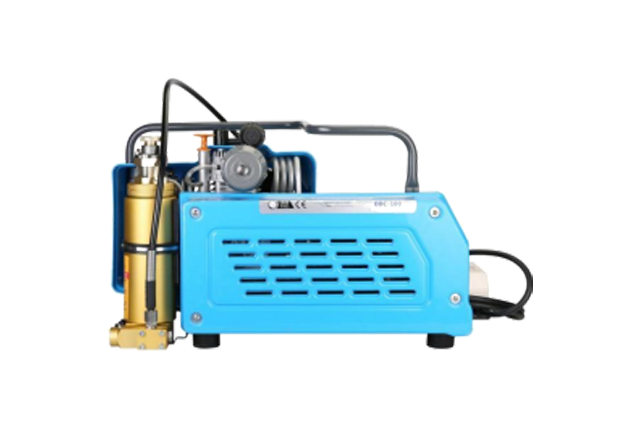

JP-K-100E/ET high-pressure compressor is widely applied in the fire protection breathing field.It is specially used for cylinder filling of fire breathing apparatus and high-pressure breathing air charging for breathing cylinders. It enables on-site rapid cylinder filling especially in fire and toxic environments.The JP-K-100E/ET high-pressure compressor supplies safe and pure high-pressure breathing air source.
With advantages of proper size, compact structure and easy mobility, the JP-K-100E/ET high-pressure compressor is a reliable high-pressure air supply unit.

Parameters

Information
Displacement: 100 L/min	Lubrication Method: Splash lubrication
Working Pressure: 225 / 330 bar	Lube Oil Capacity: 0.4 L
Power: 2.2 kW	Operating Temperature: 5–45 ℃
Cooling Method: Air cooled	Noise Level: ≤ 85 dB
Working Pressure: 330 bar for fire service	Filling Time:For 9L cylinder:20.25 minutes ( 225 bar)/29.7 minutes(330 bar)
Rotation Speed: 2300 RPM	Filling Time: 6.8L cylinder: 15.3 min (225 bar) / 22.44 min (330 bar)
Drive Type: Electric motor (3-phase / Single-phase)	Overall Dimensions: Length 770 × Width 380 × Height 420 mm
Compression Stage: 3-cylinder 3-stage	Net Weight: 45 KGS
